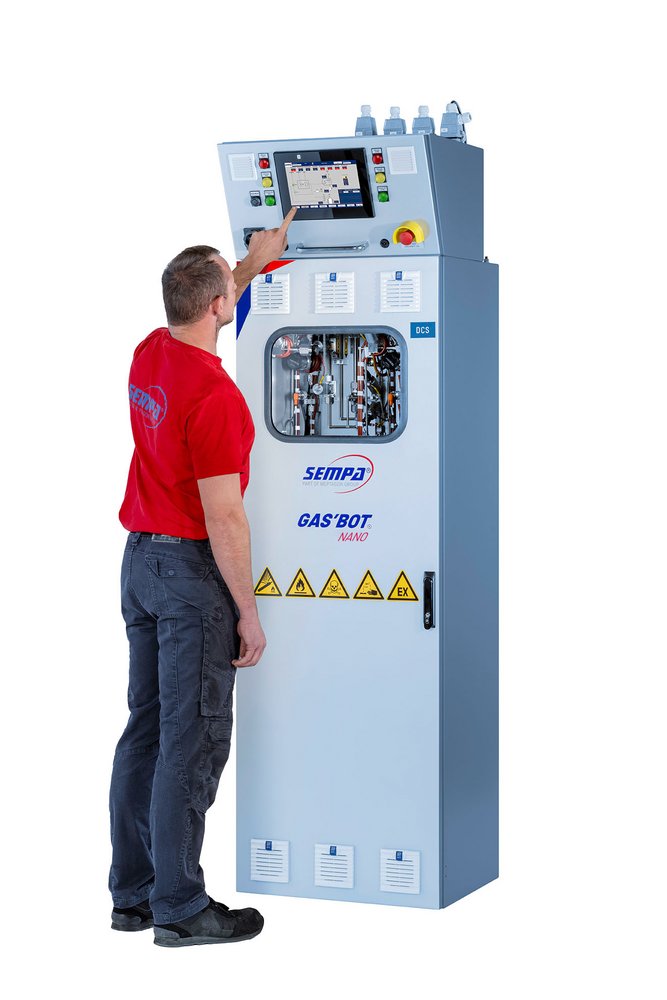

GAS'BOT

Gaskabinette für jede Anwendung

r GAS'BOT  |  CHEM'BOT |  VAPOR'BOT



Gaskabinette für spezifischen Anwendungen

SEMPAs GAS’BOT-Familie wurde für die unterschiedlichsten Anwendungen und Anforderungen entwickelt.

Das Portfolio umfasst drei verschiedene Basisversionen (SMART, PRO, EXPERT) mit einer Vielzahl von optionalen Ausstattungsmerkmalen, die es ermöglichen, das System exakt an die spezifischen technischen und budgetären Anforderungen anzupassen. Allen drei Versionen gemeinsam ist der strikte Fokus auf Sicherheit, stromlinienförmiges Design und die Auswahl langlebiger und qualitativ hochwertiger Komponenten, ganz im Sinne des SEMPA-Qualitätsversprechens.

Die SEMPA-Gasversorgungssysteme basieren auf zwei Jahrzehnten Erfahrung und Know-how im Umgang mit toxischen, pyrophoren oder korrosiven Spezialgasen. Ein hohes Maß an Flexibilität und verschiedene Anschlussmöglichkeiten ermöglichen eine einfache Integration in LAB oder FAB.

GAS'BOT Titelbeschreibung



General Features

Der GAS'BOT wird entsprechend höchster Qualitätsstandards entworfen und gebaut, um so den hohen Anforderungen unserer Kunden gerecht zu werden.  In erster Linie für den Einsatz in der Halbleiterindustrie hergestellt, eignet sich der GAS'BOT jedoch auch für viele andere Branchen und Anwendungen.



Ultra high purity components

Easy to maintain

Highest safety



Fully automated

Temperature controlled

Redundant design

Wir konfigurieren Ihren GAS'BOT

Viele Optionen helfen dabei, das System passend auf Ihre Anwendung und die eingesetzte Gasart zu konfigurieren. Bitte kontaktieren Sie uns, um Ihren GAS'BOT anzupassen. Unsere erfahrenen Ingenieure stehen Ihnen gern zur Verfügung.

Verfügbare Sicherheitsoptionen

Sehr häufig kommen gefährliche Gase zum Einsatz. Der GAS'BOT verfügt über eine Reihe von Sicherheitsoptionen zum Schutz vor Feuer, Korrosion oder versehentlicher Gasfreisetzung.


  • UV-IR Sensor
  • ECS-1


  • Smoke Sensor
  • Coaxial Piping and Monitoring


  • Gas Sensor
  • ATEX


MORE DETAILS  >

CLOSE DETAILS

UV-IR Sensor:

Every GAS'BOT is very versatile. Any bottle size, type of valve or connection can be accomodated through a huge range of adapters or a custom build feature. Please ask your SEMPA expert for your specific solution.



Smoke Sensor:

If flammable or pyrophoric gases are applied fire protection is mandatory. A smoke sensor is in general first detector of choice as usually fumes and particles will be generated already if only small amounts of such energetic materials do react. Can be combined with a UV-IR sensor to have two independent methods for fire detection.



Gas Sensor:

For a variety of dangerous gases specific, highly sensitive sensors are available to detect traces of molecules. The sensor is installed in the exhaust duct at the cabinet. A forced ventilation ensures that cabinet atmosphere gets continously directed to the gas sensor.



ECS-1:

The SEMPA emergency cylinder shutter is a highly recommended safety component for dangerous gases which are supplied in gas bottles featuring manually operated valves. ECS-1 is applied on the manual valve and automatically shuts the valve within 100ms in case of emergency.



Coaxial Piping and Monitoring:

Corrosive gases may react with stainless steel tubing. In order to monitor corrosion and to protect the facility against gas leakage coaxial piping can be applied. The gas flows through the inner tubing whereas the outer tubing is continously pressure monitored. Both break of inner tube as well as outer tube can be detected.



ATEX:

Gases which can form explosive mixtures in air need to be protected against spark formations from electric components like switches or formation of electric discharge. Building the system accoring ATEX, meaning explosion proof rules out such possible sources of ignition.

Optionen zur Temperaturregelung

Für bestimmte Prozesse müssen Gase spezifisch temperiert werden. Eine Vielzahl von Optionen passt Ihren GAS'BOT an die jeweiligen Bedürfnisse an.


  • Cylinder Heating
  • Trace Heating


  • Cylinder Cooling


  • Panel Heating


MORE DETAILS >

CLOSE DETAILS

Cylinder Heating:

For liquified gases like propane thermodynamic cooling in case of expansion (Joule-Thomson Effect) could significantly affect the evaporation rates. To ensure stable flows of gases cylinder heating can be applied to compensate for Joule-Thomson effect.



Cylinder Cooling:

Certain vacuum deposition processes require for optimal conditions liquified gases like HF or WF6 to be specifically cooled. Every GAS'BOT can be equipped with cylinder cooling sleeves including temperature monitoring in order to keep gas bottles in the optimal temperature range.



Panel Heating:

During pressure expansion of gases it can happen that components like pressure regulators may freeze (Joule-Thomson-Effect). The optional panel heating is an efficient way to protect components from unintentional freezing and it avoids ambient moisture to condensate on cold components.



Trace Heating:

For some liquified gases and special process conditions (like HFAc) trace heating of supply lines from bottle connection to point of use may be required. The line heating prevents condensation hence ensure stable and safe process conditions.

Prozessbezogene Optionen

Bestimmte Prozesse erfordern spezielle Komponenten, Materialien oder ein angepasstes Design. Der GAS'BOT kann an jede Gas- und Prozessanforderung angepasst werden.


  • Heavy Gas Optimization
  • Custom Cylinder


  • Higher Alloy Steel


  • Process Scales


MORE DETAILS >

CLOSE DETAILS

Heavy Gas Optimization:

GAS'BOT can be optimized for gases having high specific gravity (e.g. WF6). Such gases may exhibit challenges for stable and high flows. This upgrade option enables an optimized gas supply to your processes.



Higher Alloy Steel:

Highly corrosive gases such as HFAc or fluorine attack welding seams and 316L stainless steel. Process lines can optionally be build in higher alloy steels like hastelloy or monel to avoid corrosion and process contamination.



Process Scales:

In order to monitor fill levels of iquified gas bottles a scale is a effective measurement device. The scale can be installed at any GAS'BOT and fill level is monitored and displayed on the HMI.



Custom Cylinder:Every GAS'BOT is very versatile. Any bottle size, type of valve or connection can be accomodated through a huge range of adapters or a custom build feature. Please ask your SEMPA expert for your specific solution.

Drei GAS'BOT-Grundversionen

Wir bieten drei verschiedene Basisversionen mit einer Vielzahl von optionalen Ausstattungsmerkmalen an, so dass das System exakt an Ihre spezifischen technischen und budgetären Anforderungen angepasst werden kann. Allen Versionen gemeinsam ist der strikte Fokus auf Sicherheit, schlankem  Design und dem Einsatz langlebiger und hochwertiger Komponenten - ganz im Sinne des SEMPA-Qualitätsversprechens.

  • SMART

    GAS’BOT SMART cabinets offer a cost-effective solution at prime quality standards, realizing best in class Cost of Ownership. The construction is optimized for economic efficiency without compromising safety nor quality.

    Dimension
    450 (w) × 2200 (h) × 600 (d)

    Weight
    approx 150 kg

    Electrical Connection
    110 - 240 V-AC (10-A-Fuse)50/60 HzUPS

    Inlets
    1 × ¼" VCR Purge Inlet (5 – 7 bar)1 × ¼" Swagelok Connection UtilityNitrogen

    Outlets
    1 × ¼" VCR male Process lines1 × ¼" VCR male Exhaust

  • PRO

    GAS‘BOT PRO is a professional dual cylinder cabinet for continuous gas supply to point of use. With advanced controls, process monitoring functionality and better connectivity our PRO Series is the right choice for any production application.

    Dimension
    800 (w) × 2315 (h) × 600 (d)

    Weight
    approx 220 kg

    Electrical Connection
    110 - 240 V-AC (10-A-Fuse)50/60 HzUPS

    Inlets
    1 × ¼" VCR Purge Inlet (5 – 7 bar)1 × ¼" VCR Venturi Inlet (5 – 7 bar)1 × ¼" Swagelok Connection Utility

    Outlets
    1 × ¼" VCR male Process lines1 × ¼" VCR male Exhaust

  • EXPERT

    Our EXPERT system is specifically designed for use in the semiconductor industry. GAS’BOT EXPERT is a fully redundant system and it guarantees maximum reliability of gas supply, highest uptime, best purgability and optimized maintenance procedures. EXPERT stands for the utmost in gas cabinet technology and production equipment.

    Dimension
    800 (w) × 2315 (h) × 600 (d)

    Weight
    approx 220 kg

    Electrical Connection
    110 - 240 V-AC (10-A-Fuse)50/60 HzUPS

    Inlets
    2 × ¼" VCR Purge Inlet (5 – 7 bar)2× ¼" VCR Venturi Inlet (5 – 7 bar)1 × ¼" Swagelok Connection Utility

    Outlets
    1 × ¼" VCR male Process lines2 × ¼" VCR male Exhaust


GAS'BOTSmartProExpert

Dimensions (in mm)

450 × 600 × 2200

600 × 800 × 2400

600 × 800 × 2400

Number of cylinders

1

2

2

Container Size

up to B50

up to B50

up to B50

Uninterrupted Supply

NO

YES

YES

Fully redundant setup

NO

NO

YES

Touch Screen size

5"

7" to 12"

7" to 12"

Outlets

1

up to 4

up to 4

Control of pneumatic cylinder valves

YES

YES

YES





contact us

Kontaktieren Sie uns für die optimale Lösung für ihre Gasanwendung.
